Description
Revolutionary Wireless Technology

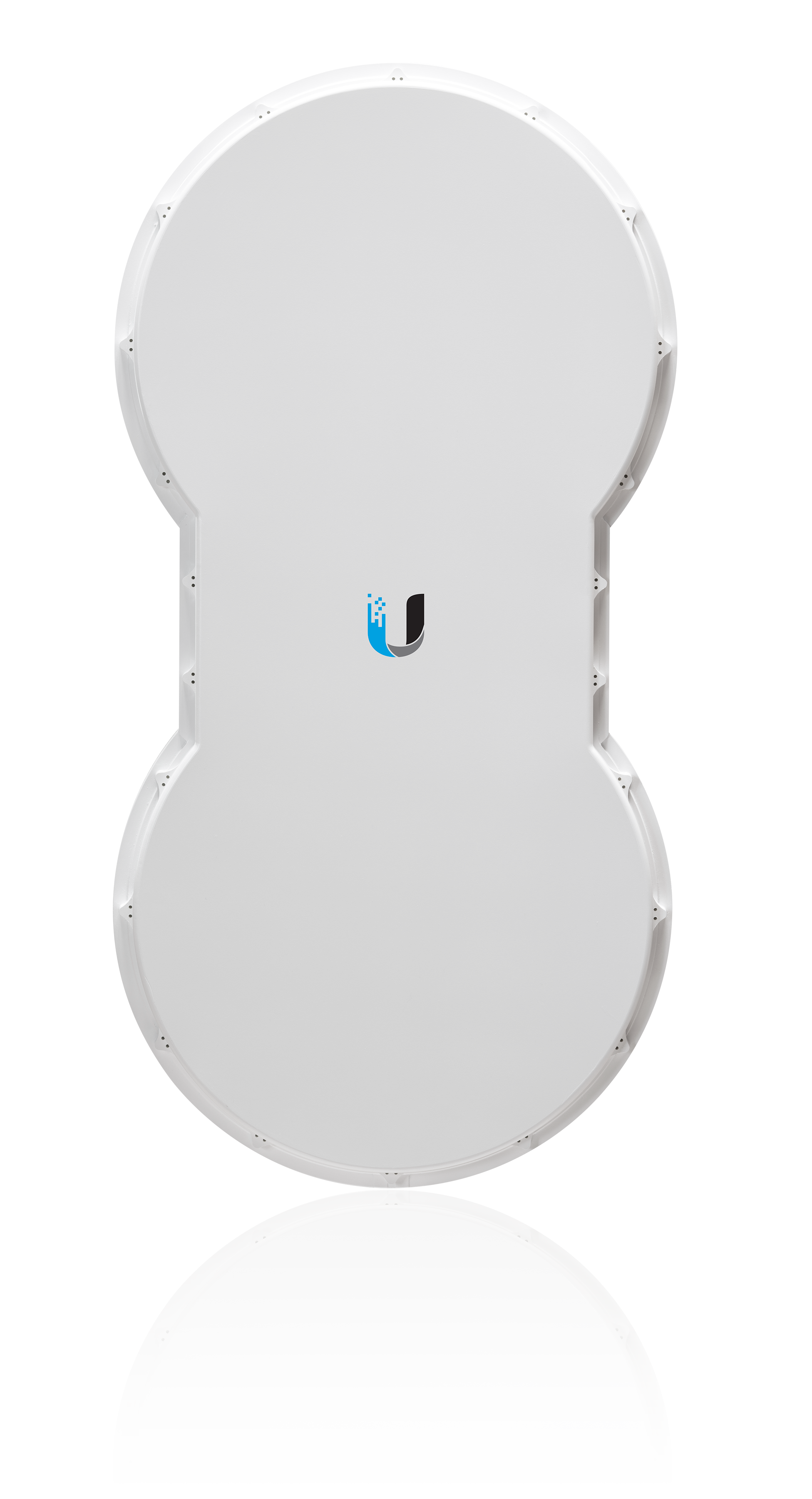

Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks™. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Supports mid-band 5 GHz frequencies.
NOTE: Price shown is for a single unit. airFiber® is normally purchased in pairs to form a single link.
| AIRFIBER | |
|---|---|
| Operating Frequency | 5470 – 5600 MHz, 5650 – 5850 MHz (FCC 15.247, 15.407, IC RSS 210) 5470 – 5875 MHz (ETSI EN 301 893, EN 302 502) 5470 – 5950 MHz (Other Regions) |
| Dimensions | 938.4 x 468.4 x 281.4 mm |
| Weight | 16 kg (Mount included) |
| Maximum Power Consumption | 40 W |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet (42-58VDC) |
| Certifications | CE, FCC, IC |
| Mounting | Pole Mount Kit (Included) |
| Wind Loading | 194 lbf @ 125 mph |
| Wind Survivability | 125 mph |
| Operating Temperature | -40 to 55°C (-40 to 131° F) |
| LEDs | (12) Status LEDs: Data Port Link/Activity Data Port Speed Management Port Link/Activity Management Port Speed GPS Synchronization Master/Slave Link Status Modulation Mode 0.25x to 4x, 6x, 8x, Overload Remote and Local Displays (Calibrated Signal Strength) |
| INTERFACE | |
| Data Port | (1) 10/100/1000 Ethernet Port |
| Configuration Port | (1) 10/100 Ethernet Port |
| Auxiliary Port | (1) RJ-12, Alignment Tone Port |
| SYSTEM | |
| Maximum Throughput | 1.0+ Gbps |
| Maximum Range | 100+ km (Dependent on Regulatory Region) |
| Packets per Second | 1+ Million |
| Encryption | 128-Bit AES |
| Forward Error Correction | 164/205 |
| Cyclic Prefix | 1/16 Fixed |
| Uplink/Downlink Ratio | 50% Fixed |
| Radio Frame Synchronization | GPS |
| Dynamic Frequency Selection | CE, FCC/IC |
| RADIO FREQUENCY | |
| GPS | GPS Clock Synchronization |
| EIRP | ~33 dBm (FCC/IC), ~20 dBm (CE) |
| Frequency Accuracy | ±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization |
| Channel Bandwidth | 100 MHz |
| Modulation | 64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO ¼x QPSK SISO |
| INTEGRATED SPLIT ANTENNA | |
| TX Gain | 23 dBi |
| RX Gain | 23 dBi |
| Beamwidth | 6° |
| Front-to-Back Ratio | 70 dB |
| Polarity | Dual-Slant Polarization |
| Cross-Polarity Isolation | > 28 dB |
