Description

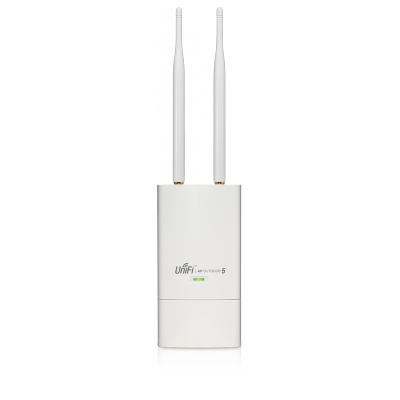

Take UniFi outdoors and link farther with the UAP-Outdoor5 which operates in the 5 GHz frequency spectrum. The UAP-Outdoor5 includes two external omni antennas and a secondary Ethernet port for bridging. It supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft).
Scalable and Unified Enterprise WiFi Management
The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed.
The UniFi Enterprise WiFi System includes the UniFi Controller software which can be easily accessed through any standard web browser. The software installs on any Windows, Mac, or Linux PC and can be run on-premise, in your private cloud or in a public cloud service. Using the UniFi Controller software, an Enterprise WiFi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, guest/hot-spot management, mobile roaming and advanced security options are all seamlessly integrated.
The UniFi controller software is included with each access point. There are no additional software license or subscription costs required to use the UniFi controller.
| UNIFI AP OUTDOOR 5G | |
|---|---|
| Dimensions | 170 x 80 x 30 mm |
| Weight | 230 g (without Antennas) 274 g (with Antennas) |
| Networking Interface | (2) 10/100 Ethernet Ports |
| Buttons | Reset |
| Antennas | (2) External 6 dBi Omni Antennas Included 191 mm (Length), 13 mm (Diameter) |
| Wifi Standards | 802.11a/n 5 GHz |
| Power Method | Passive Power over Ethernet (12-24V) |
| Power Supply | 24V, 1A PoE Adapter Included |
| Maximum Power Consumption | 6.5 W |
| Max TX Power | 27 dBm |
| BSSID | Up to Four Per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i |
| Certifications | CE, FCC, IC |
| Mounting | Wall and Pole (Kits Included) |
| Operating Temperature | -30 to 75°C |
| Operating Humidity | 5 – 95% Condensing |
| ADVANCED TRAFFIC MANAGEMENT | |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 100+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
